Early 1600's Flintlock Pistol (626)

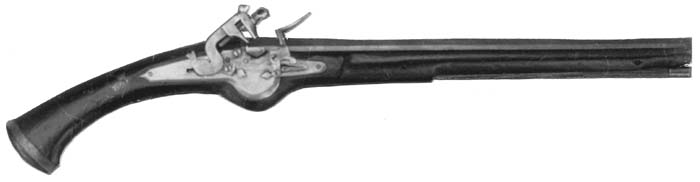

This pistol from the Pierre Cayla Collection, with this style lock was used mainly by the Dutch, there were also many sold to and used by both sides during the English Civil Wars. It is a typical early military style pistol. Many of these locks have been found in the Seneca Indian Village sites in upper New York. It is a very well balanced, lightweight pistol. The barrel is 14 1/2", octagon to round, in .54 caliber. The lock plate measures 6" x 1 3/4". The throw of the cock is 1 5/8".
| 626 | Set of Lock Castings | $150.00 | |
| 626 AS | Assembled Lock Only | $495.00 | |
| 626 LP | •Lock Plate | $24.95 | |
| 626 C | •Cock | $24.95 | |
| 626 CS | •Cock Stop | $18.95 | |
| 626 TJ | •Top Jaw | $18.95 | |
| 626 F | •Frizzen | $24.95 | |
| 626 FS | •Frizzen Spring | $23.95 | |
| 626 FB | •Frizzen Brace | $12.95 | |
| 626 P | •Pan | $23.95 | |
| 626 T | •Tumbler | $18.95 | |
| 626 S | •Sear | $18.95 | |
| 626 SS | •Sear Spring | $19.95 | |
| 626 MS | •Main Spring | $23.95 | |
| 626 TJSX | Top Jaw Screw | $12.95 | |
| 626 LSS | Lock Screw Set | $24.95 | |
| 626 TG | Trigger Guard | $24.95 | |
| 626 TR | Trigger | $12.95 | |
| 626 SLSX | Side Lock Screw (2 Needed) | $6.95 | |
| 626 FT | Front Thimble | $12.95 | |
| 626 BA | Barrel | $150.00 | |
| 626 BRP | Breech Plug | $19.95 | |
| 626 BUL | Barrel Underlug (2 Needed) | $2.95 | |
| 626 TASX | Tang Screw | $4.95 | |
| 626 ST | Stock | $150.00 | |
| 626 RR | Ramrod (Tapered, Iron Tipped) | $29.95 | |
| 626 PARTS | Parts Set With Set of Lock Castings | $595.00 | |
| 626 PARTSAS | Parts Set with Assembled Lock | $895.00 |
•Included in a Set of Lock Castings.
