Early English Sea Service Pistol (559)

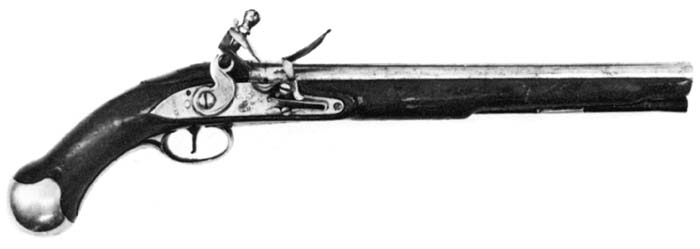

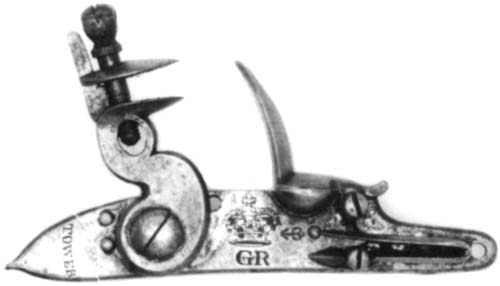

Phil Ackerman came up with this nice specimen which we copied. This is the early model 1777 Sea Service with the two screws showing behind the cock. This lock is also bridleless with a round bottom pan. The 1756 pattern lock is identical, except that it has one screw showing behind the cock and has a octagonal pan. This pistol is all brass mounted except for the belt hook. It has a 12" tapered round barrel in .62 caliber. The lock plate measures 5 3/16" x 7/8". The throw of the cock is 1 1/2".
| 559 | Set of Lock Castings | $150.00 | |
| 559 AS | Assembled Lock | $495.00 | |
| 559 LP | •Lock Plate | $24.95 | |
| 559 C | •Cock | $24.95 | |
| 559 TJ | •Top Jaw | $18.95 | |
| 559 F | •Frizzen | $24.95 | |
| 559 FS | •Frizzen Spring | $23.95 | |
| 559 T | •Tumbler | $18.95 | |
| 559 S | •Sear | $18.95 | |
| 559 SS | •Sear Spring | $19.95 | |
| 559 MS | •Main Spring | $23.95 | |
| 559 TJSX | Top Jaw Screw | $12.95 | |
| 559 LSS | Lock Screw Set | $24.95 | |
| 559 BC | Butt Cap | $29.95 | |
| 559 TG | Trigger Guard | $29.95 | |
| 559 TR | Trigger | $12.95 | |
| 559 SP | Side Plate | $18.95 | |
| 559 SLSX | Side Lock Screw (2 Needed) | $6.95 | |
| 559 FT | Front Thimble | $16.95 | |
| 559 BH | Belt Hook | $24.95 | |
| 559 BA | Barrel | $150.00 | |
| 559 BRP | Breech Plug | $19.95 | |
| 559 BUL | Barrel Underlug (2 Needed) | $2.95 | |
| 559 TASX | Tang Screw | $4.95 | |
| 559 ST | Stock | $150.00 | |
| 559 RR | Ramrod (Tapered, Brass Tipped) | $29.95 | |
| 559 PARTS | Parts Set with Set of Lock Castings | $695.00 | |
| 559 PARTSAS | Parts Set with Assembled Lock | $995.00 |
•Included in a Set of Lock Castings.
