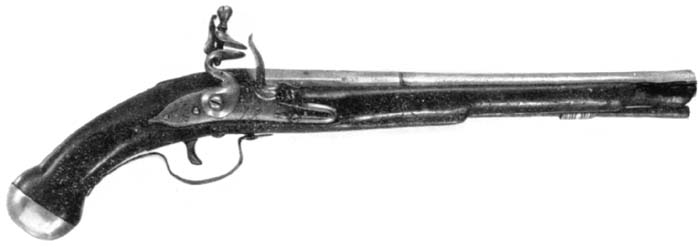

James II Flintlock Pistol 1685-1688 (628)

One of the first English Regulation pistols. Bob McCrory in Ardmore, Oklahoma has done a very nice full size drawing with notes on this pistol. It has a 14" octagon to round barrel in .62 caliber. The lock plate measures 5 3/8" x 1". The throw of the cock is 1 5/8".

628 Set of Lock Castings  $125.00
628 AS Assembled Lock  $295.00
628 LP •Lock Plate $18.95
628 C •Cock  $18.95
628 TJ •Top Jaw  $12.95
628 F •Frizzen $18.95
628 FS •Frizzen Spring $18.95
628 T •Tumbler $12.95
628 S •Sear $12.95
628 SS •Sear Spring $12.95
628 MS •Main Spring $18.95
628 TJSX Top Jaw Screw $9.95
628 LSS Lock Screw Set $19.95
628 BC Butt Cap $24.95
628 TG Trigger Guard   $19.95
628 TR Trigger $9.95
628 SLSX Side Lock Screw (3 Needed) $4.95
628 FT Front Thimble  $10.95
628 BA Barrel  $125.00
628 BRP Breech Plug $19.95
628 BUL Barrel Underlug (2 Needed) $2.95
628 TASX Tang Screw $4.95
628 ST Stock  $125.00
628 RR Ramrod (Tapered, Brass Tipped) $29.95
628 PARTS Parts Set with Set of Lock Castings $550.00
628 PARTSAS Parts Set with Assembled Lock $695.00

Included in a Set of Lock Castings.
