German Jager Percussion Lock (534)

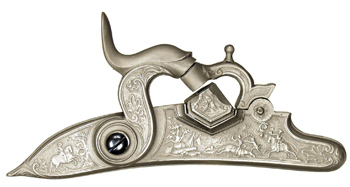

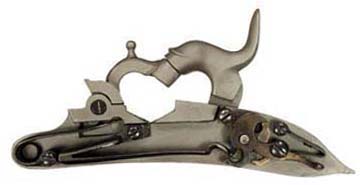

Nice late German Jager percussion lock with nipple saftey arm. We also have the screw in bolster nipple drum for this lock. The lock plate measures 5 1/2" x 1". The throw of the cock is 1 5/8".
| 534 | Set of Lock Castings | $150.00 | |
| 534 AS | Assembled Lock | $495.00 | |
| 534 LP | •Lock Plate | $24.95 | |
| 534 H | •Hammer | $29.95 | |
| 534 T | •Tumbler | $18.95 | |
| 534 B | •Bridle | $18.95 | |
| 534 S | •Sear | $18.95 | |
| 534 SS | Sear Spring | $19.95 | |
| 534 MS | •Main Spring | $23.95 | |
| 534 NSAF | •Nipple Safety | $24.95 | |
| 534 NSAFS | •Nipple Safety Spring | $23.95 | |
| 534 LSS | Lock Screw Set | $19.95 | |
| 534 D | Drum | $19.95 |
•Included in a Set of Lock Castings.
