Right Hand Early Matchlock (528)

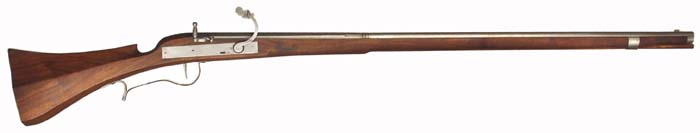

This is a nice full size matchlock musket from the Pierre Cayla Collection and is almost identical to the one in the Army Museum in Paris used by the Kings Musketeer’s. The barrel is 46" long, octagon to round, in .75 or .77 caliber. Even this size gun is still fairly light weight, weighing only 8 1/4 pounds. One nice thing about these early matchlocks is that almost all countries used about the same stock style until quite late, so you can use the same gun in different areas of collecting and reenacting. We also have remade the lock in a left hand version below for you south paw’s. The lock plate measures 8" x 1". You can taper it, put double angles on it or leave it as they are. You can use a trigger or trigger lever with this lock. When ordering a parts set, please specify whether you want a trigger guard and trigger or a trigger lever.
| 528 | Set of Lock Castings | $99.95 | |
| 528 AS | Assembled Lock Only | $195.00 | |
| 528 LP | •Lock Plate | $24.95 | |
| 528 C | •Cock | $24.95 | |
| 528 T | •Tumbler | $18.95 | |
| 528 SB | •Sear Bar | $18.95 | |
| 528 SBS | •Sear Bar Spring | $19.95 | |
| 528 SBSX | Sear Bar Screw | $1.50 | |
| 528 CSX | Cock Screw 1/4 x 20 | $5.95 | |
| 528 LSS | Lock Screw Set | $7.95 | |
| 528 P | Pan | $18.95 | |
| 528 PC | Pan Cover | $18.95 | |
| 528 PF | Pan Fence | $18.95 | |
| 528 PCSX | Pan Cover Screw | $1.95 | |
| 528 BPI | Butt Plate Iron (Flat Stock) | $9.95 | |
| 528 BPN | Butt Plate Square Nails (10 Total) | $4.95 | |
| 528 TG | Trigger Guard | $39.95 | |
| 528 TR | Trigger | $12.95 | |
| 528 TL | Trigger Lever | $24.95 | |
| 528 SLSX | Side Lock Screw (2 Needed) | $6.95 | |
| 528 NBI | Nose Band Iron (Flat Stock) | $3.95 | |
| 528 BA | Barrel | $375.00 | |
| 528 BRP | Breech Plug | $24.95 | |
| 528 BUL | Barrel Underlug (3 Needed) | $2.95 | |
| 528 TASX | Tang Screw | $6.95 | |
| 528 ST | Stock | $325.00 | |
| 528 RR | Ramrod (Tapered, Iron Tipped) | $39.95 | |
| 528 PARTS | Parts Set with Set of Lock Castings | $950.00 | |
| 528 PARTSAS | Parts Set with Assembled Lock | $1,050.00 |
•Included in a Set of Lock Castings.
