1752 Spanish Infantry Musket (622)

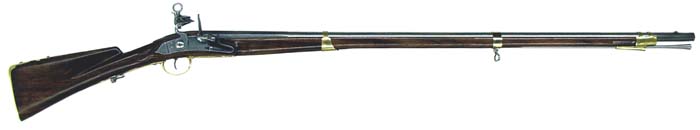

In 1700, a new king came to the throne (Philip V) who was of French descent. Styles started changing in all things including weapons. The model 1700 Infantry Musket was updated with the new French style lock in 1718, which was very similar to the 1717 French Infantry Musket lock but without internal and external bridles which were added in 1722. A new Infantry musket came out in 1752 which was compilation of the best features of the earlier muskets (Spanish and French). The new muskets were iron mounted, with a wooden rammer, until 1755 when steel ramrods were adopted. Then in 1757 the furniture was changed to brass. These muskets are very attractive with full moulding and curving around the lock panels, tang and very slender forearms. The barrel is 43" octagon to round in .69 caliber. We offer both steel and brass mountings. Please specify which you are ordering. The lock plate measures 6 1/2" x 1 3/16". The throw of the cock is 2".

622 Set of Lock Castings $135.00
622 AS Assembled Lock $295.00
622 LP •Lock Plate $18.95
622 C •Cock $18.95
622 TJ •Top Jaw $12.95
622 F •Frizzen $18.95
622 FS •Frizzen Spring $18.95
622 P •Pan $12.95
622 T •Tumbler $12.95
622 B •Bridle $12.95
622 S •Sear $12.95
622 SS •Sear Spring $12.95
622 MS •Main Spring $18.95
622 TJSX Top Jaw Screw $12.95
622 LSS Lock Screw Set $24.95
622 BP Butt Plate $29.95
622 TG Trigger Guard $29.95
622 TP Trigger Plate $12.95
622 TR Trigger $9.95
622 SP Side Plate $14.95
622 SLSX Side Lock Screw (2 Needed) $4.95
622 RBB Rear Barrel Band $19.95
622 MBB Middle Barrel Band $24.95
622 FBB Front Barrel Band $29.95
622 FBBS Front Barrel Band Spring $12.95
622 FSSW Front Sling Swivel $12.95
622 FSSWSX Front Sling Swivel Screw $2.95
622 RSSW Rear Sling Swivel $12.95
622 RSSWB Rear Sling Swivel Base $10.95
622 BA Barrel  $245.00
622 BRP Breech Plug $24.95
622 TASX Tang Screw $4.95
622 ST Stock $265.00
622 RR Ramrod (Steel) $49.95
622 BAY Bayonet $99.95
622 PARTS Parts Set with Set of Lock Castings $995.00
622 PARTSAS Parts Set with Assembled Lock $1095.00

Included in a Set of Lock Castings.
