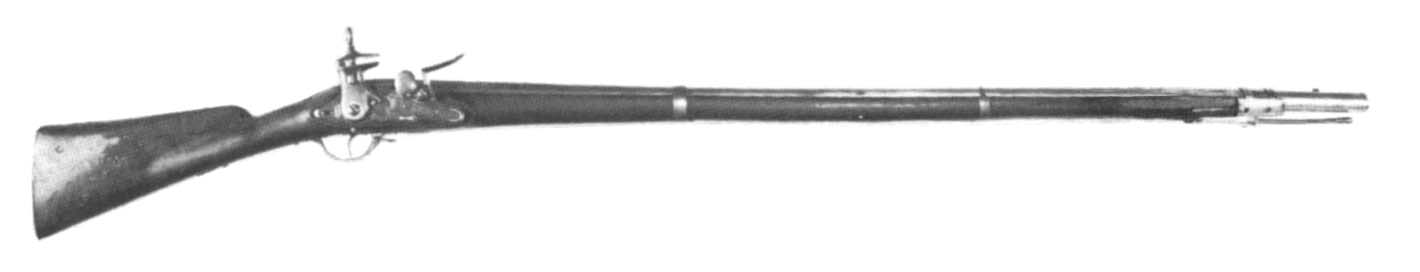

1803 Spanish Musket (780)
The Spanish came out with this new lock in 1803. It has the sear setup of a miquelet combined with the internal mainspring of the 1752 Spanish Musket Series (622). All the furniture was redesigned and is now a much simpler pattern. The stock design is still very similar to the earlier models but slightly slimmer in comparison and most are made in beech or maple. These were used all through the Napoleonic Wars. The barrel is a 43 1/2" octagon to round, available in .69 caliber. The lock plate measures 6 1/2" x 1 5/16". The throw of the cock is 1 1/2".
| 780 | Set of Lock Castings | $150.00 | |
| 780 AS | Assembled Lock | $495.00 | |
| 780 LP | •Lock Plate | $24.95 | |
| 780 C | •Cock | $24.95 | |
| 780 TJ | •Top Jaw | $18.95 | |
| 780 F | •Frizzen | $24.95 | |
| 780 FS | •Frizzen Spring | $23.95 | |
| 780 P | •Pan | $23.95 | |
| 780 T | •Tumbler | $18.95 | |
| 780 B | •Bridle | $18.95 | |
| 780 S | •Sear | $18.95 | |
| 780 SS | •Sear Spring | $19.95 | |
| 780 MS | •Main Spring | $23.95 | |
| 780 TJSX | Top Jaw Screw | $12.95 | |
| 780 LSS | Lock Screw Set | $24.95 | |
| 780 BP | Butt Plate | $39.95 | |
| 780 TG | Trigger Guard | $39.95 | |
| 780 TP | Trigger Plate | $15.95 | |
| 780 TR | Trigger | $12.95 | |
| 780 SP | Side Plate | $18.95 | |
| 780 SLSX | Side Lock Screw (2 Needed) | $6.95 | |
| 780 RBB | Rear Barrel Band | $29.95 | |
| 780 MBB | Middle Barrel Band with Swivel Lug | $34.95 | |
| 780 FBB | Front Barrel Band | $39.95 | |
| 780 FBBS | Front Barrel Band Spring | $19.95 | |
| 780 FSSW | Front Sling Swivel | $16.95 | |
| 780 FSSWSX | Front Sling Swivel Screw | $2.95 | |
| 780 RSSW | Rear Sling Swivel | $16.95 | |
| 780 BA | Barrel | $375.00 | |
| 780 BRP | Breech Plug | $24.95 | |
| 780 TASX | Tang Screw | $4.95 | |
| 780 ST | Stock | $325.00 | |
| 780 RR | Ramrod (Steel) | $59.95 | |
| 780 BAY | Bayonet | $125.00 | |
| 780 BAYST | Bayonet Stud | $9.95 | |
| 780 PARTS | Parts Set with Set of Lock Castings | $1,195.00 | |
| 780 PARTSAS | Parts Set with Assembled Lock | $1,495.00 |
•Included in a Set of Lock Castings.
