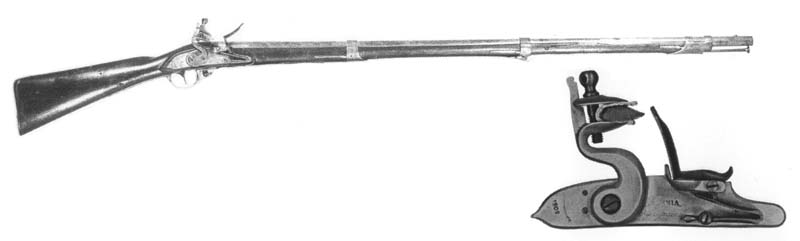

First Model Virginia Musket (722)

722FS-800

In 1789, Virginia started their own small arms manufactory in Richmond, Virginia. This is the first pattern of the Virginia Muskets. It was produced from 1802 to 1809. It has a 44 3/4" long round barrel, in .69 caliber. George Moller states that the barrel lengths varied. For economy reasons 39" and 42" long barrels were also acceptable at the arsenal. The lock plate measures 6 1/2" x 1 1/4".

722 Set of Lock Castings $125.00
722 AS Assembled Lock $295.00
722 LP •Lock Plate $18.95
722 C •Cock $18.95
722 TJ •Top Jaw $12.95
722 F •Frizzen $18.95
722 FS •Frizzen Spring $18.95
722 P Pan (for Reconversion only) $12.95
722 T •Tumbler $12.95
722 B •Bridle $12.95
722 S •Sear $12.95
722 SS •Sear Spring $12.95
722 MS •Main Spring $18.95
722 TJSX Top Jaw Screw $9.95
722 LSS Lock Screw Set $19.95
722 BP Butt Plate $29.95
722 TG Trigger Guard $29.95
722 TP Trigger Plate $12.95
722 TR Trigger $9.95
722 SP Side Plate $14.95
722 SLSX Side Lock Screw (2 Needed) $4.95
722 RBB Rear Barrel Band $19.95
722 MBB Middle Barrel Band $24.95
722 FBB Front Barrel Band $29.95
722 BBS Barrel Band Spring (3 Needed) $12.95
722 SSW Sling Swivel Bell Type (2 Needed) $10.95
722 RSSWL Rear Sling Swivel Lug $9.95
722 BA Barrel  $245.00
722 BRP Breech Plug $24.95
722 TASX Tang Screw $4.95
722 ST Stock $265.00
722 RR Ramrod 44 3/4" (Steel) $49.95
722 CW Cleaning Worm $19.95
722 BAY-TS Bayonet (Top Stud) $99.95
722 PARTS Parts Set with Set of Lock Castings $975.00
722 PARTSAS Parts Set with Assembled Lock $1095.00

Included in a Set of Lock Castings.
