1795 U.S. Contract Ketland Lock (522)

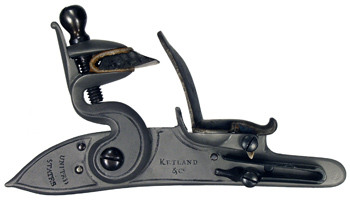

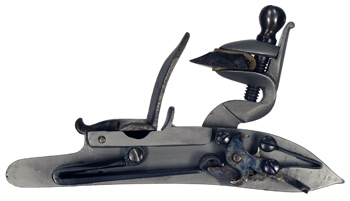

In 1795 the United States ordered 3,000 musket size and rifle-pistol size locks from John Ketland these were issued out to various contractors to build muskets, rifles and pistols, for the Government. This is the rifle-pistol size lock that was issued out for the contract rifles, pistols and Indian Treaty Rifles. The lock plate measures 5 3/8” X 15/16”. The throw of the cock is 1 1/2”.

522 Set of Lock Castings $125.00
522 LP •Lock Plate $18.95
522 C •Cock $18.95
522 TJ •Top Jaw $12.95
522 F •Frizzen $18.95
522 FS •Frizzen Spring $18.95
522 T •Tumbler $12.95
522 B •Bridle $12.95
522 S •Sear $12.95
522 SS •Sear Spring $12.95
522 MS •Main Spring $18.95
522 TJSX Top Jaw Screw $9.95
522 LSS Lock Screw Set $19.95

Included in a Set of Lock Castings.
